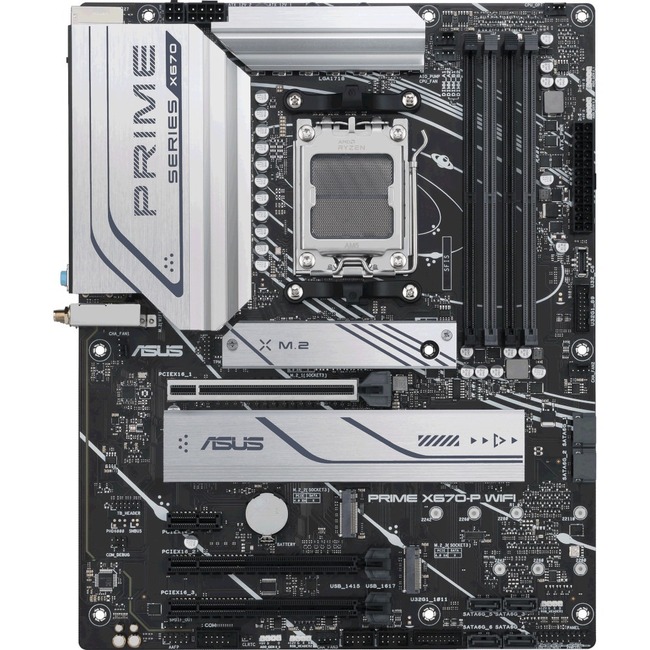

Asus Prime X670-P WIFI Desktop Motherboard - AMD X670 Chipset - Socket AM5 - ATX - Ryzen 5, Ryzen 7, Ryzen 9 Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 6 x SATA Interfaces
Ryzen 5, Ryzen 7, Ryzen 9 Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 6 x SATA Interfaces
| Bluetooth Standard | Bluetooth 5.2 |
| Chipset Manufacturer | AMD |
| Chipset Model | X670 |
| HDMI Version | 2.1 |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 5600 MHz |
| Number of Memory Slots | 4 |
| Number of Onboard USB 3.2 Ports | 5 |
| Number of PCI Express x16 Slots | 3 |
| Number of SATA Interfaces | 6 |
| Onboard Video | CPU Dependent Video |
| PCI Express Standard | PCI Express 3.0 |
| PCI Express Standard | PCI Express 4.0 |
| Processor Socket | Socket AM5 |
| Processor Supported | Ryzen 7 |
| Total Number of Onboard USB Ports | 9 |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Audio Channels | 7.1 |
| Brand Name | Asus |
| Controller Type | Serial ATA/600 |
| Depth | 9.6" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form factor | ATX |
| Limited Warranty | 3 Year |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | PRIMEX670-PWIFI |
| Manufacturer Website Address | http://usa.asus.com |
| Marketing Information | PRIME X670-P WIFI
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design comprehensive cooling solutions and intelligent tuning options PRIME X670-P WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME X670 motherboard packs flexible tools to tune every aspect of your system enabling performance tweaks to perfectly match the way you work to maximize productivity. CPU Performance Boost
AMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher. COOLING
PRIME X670 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. Heatsinks | M.2 Heatsink An M.2 heatsink takes care of the M.2 slot warding off throttling that can occur with M.2 storage during sustained transfers. |
| Memory form factor | DIMM |
| Memory form factor | UDIMM |
| Memory Technology | DDR5 SDRAM |
| Number of USB 2.0 Ports | 2 |
| Package Contents | - Prime X670-P WIFI Desktop Motherboard
- 2 x SATA 6Gb/s Cables
- 1 x ASUS Wi-Fi Moving Antennas
- 1 x I/O Shield
- 1 x Rubber Package for M.2
- 2 x Screw Packages for M.2 SSD
- 1 x User Guide
|
| Product Line | Prime |
| Product Model | X670-P WIFI |
| Product Name | Prime X670-P WIFI Desktop Motherboard |
| Product Type | Desktop Motherboard |
| RAID Levels | 1 |
| RAID Levels | 10 |
| RAID Levels | 0 |
| UPC Alternates | 195553884587 |
| Width | 12" |
