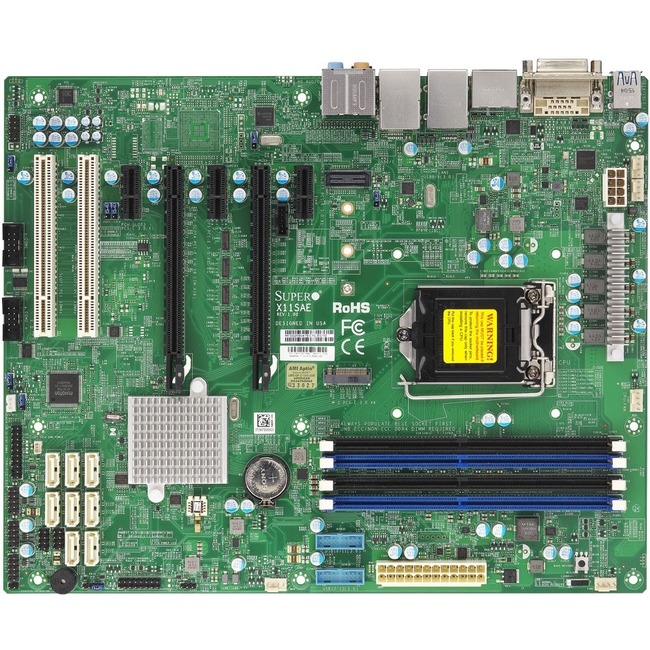

Supermicro X11SAE Workstation Motherboard - Intel C236 Chipset - Socket H4 LGA-1151 - ATX
New
Supermicro X11SAE Workstation Motherboard - Intel C236 Chipset - Socket H4 LGA-1151 - ATX - 64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 8 x SATA Interfaces
| $399.24 |
- Compatible Intel Core i7 processor provides lightning fast speed and peak performance, even for the toughest tasks and intensive games
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- With 2 USB 3.0 port(s), transfer multiple or large files without any error
- HDMI interface connects the top of the line PCs, Blu-ray players, and cutting edge Gaming Controllers
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
Subscribe & Save5%
| Buy Once $399.24 | |||
| Subscribe & Save$379.28 | |||
| Delivery Ferquency |
You may be also interested
$188.83
$179.99
$1,130.00
$1,099.99
$226.06
$199.99
$188.06
$199.99
$156.17
$179.99
$219.61
$209.99
$182.87
$179.99
$227.80
$259.99
$178.82
$169.99
$207.09
$274.99
$209.48
$199.99
$282.20
$249.99
$209.54
$249.99
$240.17
$289.99
$228.60
$259.99
$186.37
$179.99
$130.12
$154.99
$232.67
$279.99
$1,031.13
$1,099.99
$609.84
$599.99
Supermicro X11SAE Workstation Motherboard - Intel C236 Chipset - Socket H4 LGA-1151 - ATX - 64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 8 x SATA Interfaces
64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 8 x SATA Interfaces
64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 8 x SATA Interfaces
Product Specifications
| Chipset Manufacturer | Intel |
| Chipset Model | C236 |
| Maximum Memory Supported | 64 GB |
| Memory Speed Supported | 2133 MHz |
| Memory Speed Supported | 1600 MHz |
| Memory Speed Supported | 1866 MHz |
| Number of Memory Slots | 4 |
| Number of PCI Express x1 Slots | 3 |
| Number of PCI Express x16 Slots | 2 |
| Number of SATA Interfaces | 8 |
| Number of Total Expansion Slots | 7 |
| Onboard Video | CPU Dependent Video |
| Processor Socket | Socket H4 LGA-1151 |
| Processor Supported | Core i5 |
| Processor Supported | Xeon |
| Processor Supported | Core i7 |
| Processor Supported | Core i3 |
| Audio Channels | 7.1 |
| Brand Name | Supermicro |
| Compatibility | Supermicro Chassis: Mid/Mini Tower Chassis:
4U / Tower Chassis:
SuperServer(s) Model(s):
|
| Controller Type | Serial ATA/600 |
| Depth | 9.6" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form factor | ATX |
| Limited Warranty | 1 Year |
| Manufacturer | Supermicro Computer Inc |
| Manufacturer Part Number | MBD-X11SAE-O |
| Manufacturer Website Address | http://www.supermicro.com |
| Marketing Information | Xeon® E3-1200 v5 Family Boards / Socket H4 (LGA 1151) Supermicro's single processor Socket H4 designs feature the Intel® C236 chipset which support the Intel® Xeon E3-1200 v5 processor family and Intel® 6th Gen Core i7/i5/i3 processor family. With outstanding features that include up to 64GB of fast DDR4 DRAM in 4 DIMMS onboard IPMI or vPro USB 3.0/USB 3.1 PCI-E 3.0 M.2 and SATA 3.0 (6Gbps) HDD. With support for next generation graphics controller 4K HD graphics resolution and 3 displays with HDMI DP and DVI ports. Designed with performance reliability manageability and long life in mind Supermicro's single processor motherboards are the perfect solution for a variety of server workstation and embedded applications. |
| Memory form factor | DIMM |
| Memory form factor | UDIMM |
| Memory Technology | DDR4 SDRAM |
| Package type | Bulk |
| Product Model | X11SAE |
| Product Name | X11SAE Workstation Motherboard |
| Product Type | Workstation Motherboard |
| RAID Levels | 10 |
| RAID Levels | 5 |
| RAID Levels | 1 |
| RAID Levels | 0 |
| Total Number of USB Ports | 6 |
| UPC Alternates | 060896679568 672042204793 |
| Width | 12" |
