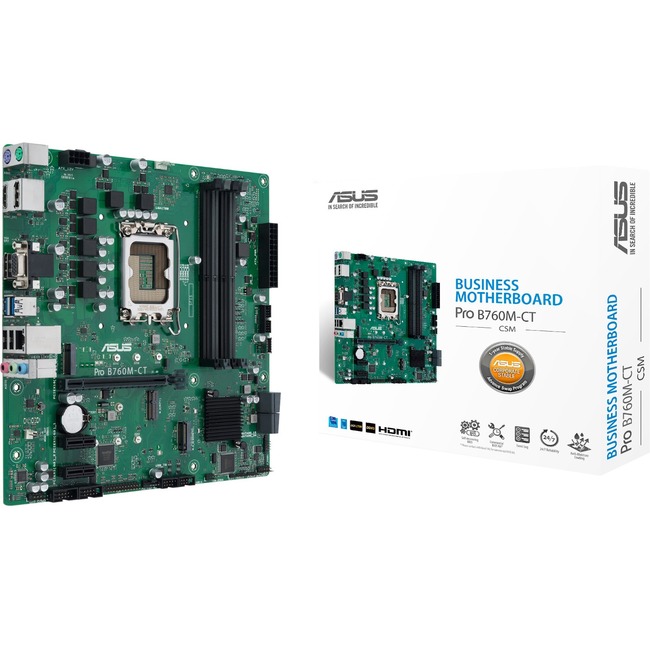

Asus Pro B760M-CT-CSM Industrial Motherboard - Intel B760 Chipset - Socket LGA-1700 - Micro ATX
$144.87 |
- Intel® LGA 1700 socket: Ready for 13th Gen Intel Core™ processors
- ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
- ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
- Enhanced system security: Boot defender with NIST SP800-193 compliance, a self-recovering BIOS, and TPM to safeguard PCs
- Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
- Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
- Better serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
- Ultrafast connectivity: PCIe 4.0, DDR5, front USB 3.2 Gen 1 Type-C®
Buy Once $144.87 | |||
Subscribe & Save$137.63 |
Delivery Ferquency |
Core, Pentium Gold, Celeron Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 4 x SATA Interfaces
Product Specifications
Chipset Manufacturer | Intel |
Chipset Model | B760 |
HDMI Version | 2.1 |
Maximum Memory Supported | 128 GB |
Memory Speed Supported | 6000 MHz |
Memory Speed Supported | 5600 MHz |
Memory Speed Supported | 5000 MHz |
Memory Speed Supported | 5400 MHz |
Memory Speed Supported | 5800 MHz |
Memory Speed Supported | 5200 MHz |
Memory Speed Supported | 4800 MHz |
Memory Speed Supported | 6200 MHz |
Number of Memory Slots | 4 |
Number of PCI Express x1 Slots | 2 |
Number of Total Expansion Slots | 3 |
Onboard Video | CPU Dependent Video |
PCI Express Standard | PCI Express 3.0 |
PCI Express Standard | PCI Express 4.0 |
Processor Generation Supported | 12th Gen |
Processor Generation Supported | 13th Gen |
Processor Socket | Socket LGA-1700 |
Processor Supported | Celeron |
Processor Supported | Pentium Gold |
Processor Supported | Core |
Total Number of Onboard USB Ports | 7 |
Audio Channels | 7.1 |
Brand Name | Asus |
Controller Type | Serial ATA/600 |
Environmental Certification | RoHS |
Environmentally Friendly | Yes |
Form factor | Micro ATX |
Limited Warranty | 3 Year |
Manufacturer | ASUS Computer International |
Manufacturer Part Number | ProB760M-CT-CSM |
Manufacturer Website Address | http://usa.asus.com |
Marketing Information | ASUS Pro business motherboards provide enhanced features to smooth your IT operations including comprehensive system protection 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality TCO-optimized solution for your business computing-needs. ASUS Corporate Stable Model ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software. ASUS Control Center Express ASUS Control Center Express is a real-time IT monitoring and management tool designed for business that improves productivity and enhances security helping prevent unauthorized access and data leaks. The intuitive dashboard enables easy real-time hardware and software management across your organization. Purchase of a Pro motherboard entitles you to a copy of Control Center Express - a US$60 Optimize IT endpoint managementDesigned to assist IT staff in monitoring and controlling devices within their corporate networks and facilitate inventory checking in multiple locations remotely Automate IT maintenanceAllows IT staff to schedule automatic updates of the latest BIOS software and utilities to specific or all devices at off-peak times enhancing system stability and IT operational flexibility Securely manage all of endpointsSecurely manage endpoint configuration portable storage access and PC software applications by enabling them to create grouping rules on individual devices DDR5 Support This business motherboard is a DDR5-compatible motherboard that optimizes memory module speeds and stability while providing an advanced voltage delivery architecture for greater energy efficiency. PCIe 4.0 This business motherboard is specially designed for 13th Gen Intel® Core™ processors and offer PCIe® 4.0 connectivity for storage devices and graphics cards. Wide bandwidth and superfast transmission speeds empower you to create feature-rich builds that deliver optimal performance wherever it's needed. ASUS Boot Defender ASUS Boot Defender on ASUS Business motherboards is designed to automatically protect detect and recover the boot environment against any intrusions and attacks. |
Memory form factor | UDIMM |
Memory form factor | DIMM |
Memory Technology | DDR5 SDRAM |
Package Contents |
|
Product Line | Pro |
Product Model | B760M-CT-CSM |
Product Name | Pro B760M-CT-CSM Industrial Motherboard |
Product Type | Industrial Motherboard |
RAID Levels | 5 |
RAID Levels | 1 |
RAID Levels | 0 |
RAID Levels | 10 |
UPC Alternates | 197105019614 |
Width | 9.6" |
