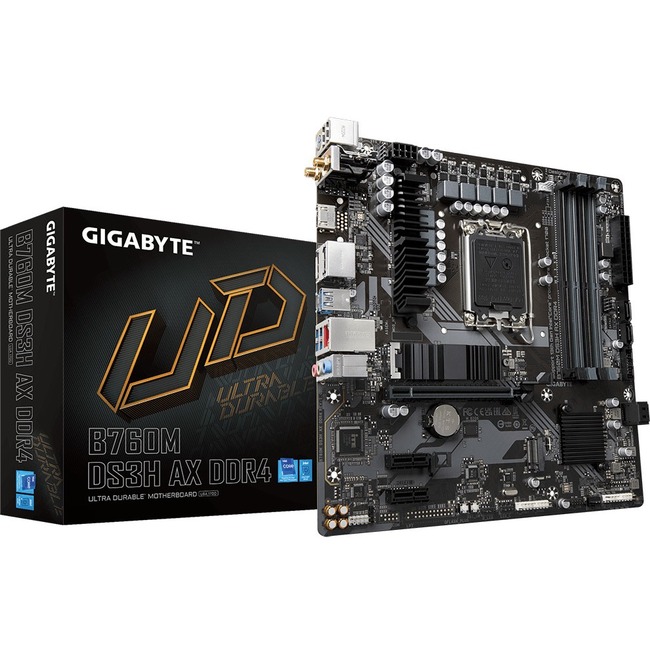

Gigabyte Ultra Durable B760M DS3H AX DDR4 Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - Micro ATX - Core, Pentium Gold, Celeron Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 4 x SATA Interfaces
Core, Pentium Gold, Celeron Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 4 x SATA Interfaces
| Bluetooth Standard | Bluetooth 5.2 |
| Chipset Manufacturer | Intel |
| Chipset Model | B760 |
| HDMI Version | 2.0 |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 3200 MHz |
| Number of Memory Slots | 4 |
| Number of PCI Express x1 Slots | 2 |
| Number of Total Expansion Slots | 3 |
| Onboard Video | CPU Dependent Video |
| PCI Express Standard | PCI Express 3.0 |
| PCI Express Standard | PCI Express 4.0 |
| Processor Generation Supported | 12th Gen |
| Processor Socket | Socket LGA-1700 |
| Processor Supported | Pentium Gold |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Audio Channels | 7.1 |
| Brand Name | Gigabyte |
| Controller Type | Serial ATA/600 |
| Country of origin | China |
| Environmental Certification | WEEE |
| Environmental Certification | ErP Ready |
| Environmentally Friendly | Yes |
| Form factor | Micro ATX |
| Manufacturer | GIGABYTE Technology Inc |
| Manufacturer Part Number | B760M DS3H AX DDR4 |
| Manufacturer Website Address | http://www.gigabyte.us |
| Marketing Information | 6+2+1 Phases Hybrid Digital VRM Design 6+2+1 Phases Low RDS(on) MOSFETs
Premium Choke and Capacitors to improve transient response and minimize oscillation
GIGABYTE Ultra-Efficient M.2 Thermal Guard With durability in mind GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue. CONNECTIVITY GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network storage and Wi-Fi connectivity. PERSONALIZATION GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality. |
| Memory form factor | DIMM |
| Memory form factor | UDIMM |
| Memory Technology | DDR4 SDRAM |
| Product Line | Ultra Durable |
| Product Name | Ultra Durable B760M DS3H AX DDR4 Desktop Motherboard |
| Product Type | Desktop Motherboard |
| RAID Levels | 5 |
| RAID Levels | 10 |
| RAID Levels | 1 |
| RAID Levels | 0 |
| Total Number of USB Ports | 6 |
| UPC Alternates | 889523034620 |
| Width | 9.6" |
