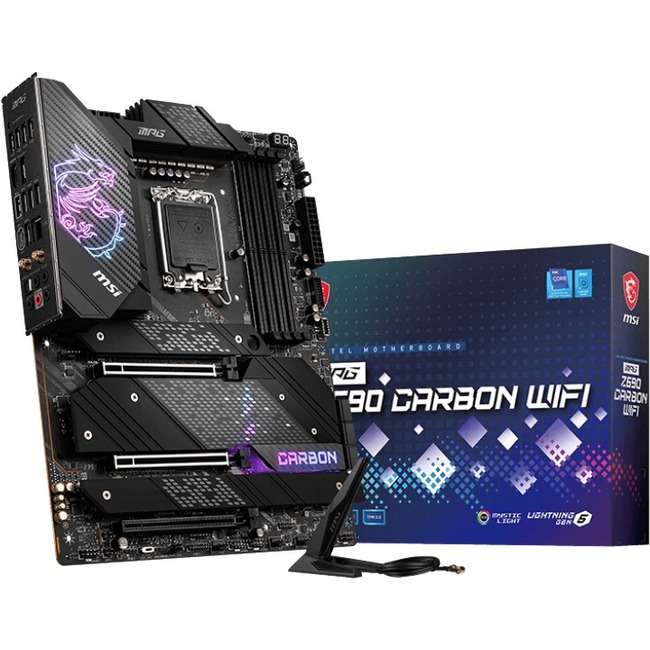

MSI MPG Z690 CARBON WIFI Desktop Motherboard - Intel Z690 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - ATX - Pentium Gold, Celeron, Core i5, Core i7, Core i9 Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 6 x SATA Interfaces
Pentium Gold, Celeron, Core i5, Core i7, Core i9 Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 6 x SATA Interfaces
| Chipset Manufacturer | Intel |
| Chipset Model | Z690 |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 4000 MHz |
| Multi GPU Supported | CrossFire |
| Number of Memory Slots | 4 |
| Number of SATA Interfaces | 6 |
| Number of Total Expansion Slots | 3 |
| Onboard Video | CPU Dependent Video |
| Processor Generation Supported | 12th Gen |
| Processor Socket | Socket LGA-1700 |
| Processor Supported | Celeron |
| S/PDIF | Yes |
| Total Number of Onboard USB Ports | 7 |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Audio Channels | 7.1 |
| Controller Type | Serial ATA/600 |
| Country of origin | China |
| Depth | 9.6" |
| Form factor | ATX |
| Limited Warranty | 3 Year |
| Manufacturer | MSI |
| Manufacturer Part Number | Z690CARBWIFI |
| Manufacturer Website Address | http://www.msi.com |
| Marketing Information | Premium Thermal Solution: Enlarged heatsink with heat-pipe MOSFET thermal pads rated for 7W/mk additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience |
| Memory form factor | UDIMM |
| Memory form factor | DIMM |
| Memory Technology | DDR5 SDRAM |
| Package Contents | - MPG Z690 CARBON WIFI Desktop Motherboard
- USB Drive
- Cleaning Brush
- Wi-Fi Antenna
- Case Badge
- User Manual
- Quick Installation Guide
- MEG Stickers
- Cable Stickers
- Reward Program / Shout out Flyer
- Product Catalog
- Registration Card
- EZ M.2 Clip
- Screwdrivers
- 1 to 2 RGB LED Extension Y Cable
- CORSAIR RGB LED Extension Cable
- Rainbow RGB LED Extension Cable
- 2 x SATA Cables
|
| Product Line | MPG |
| Product Model | Z690 CARBON WIFI |
| Product Name | MPG Z690 CARBON WIFI Desktop Motherboard |
| Product Type | Desktop Motherboard |
| RAID Levels | 1 |
| RAID Levels | 10 |
| RAID Levels | 5 |
| RAID Levels | 0 |
| UPC Alternates | 824142269756 |
| Width | 12" |
